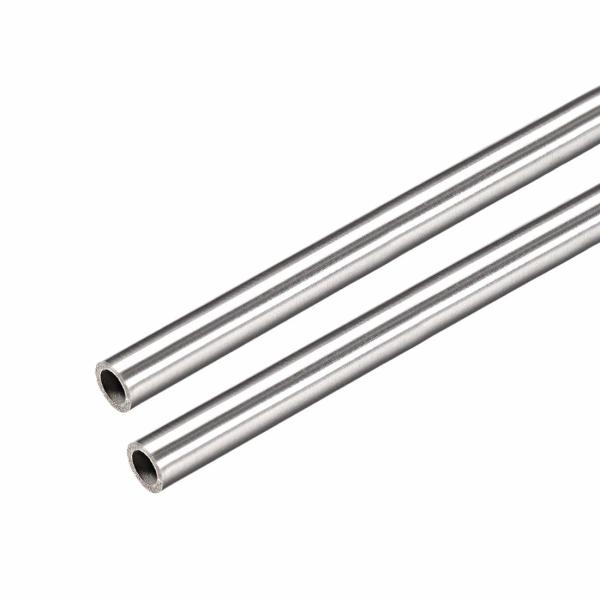

Hydraulic 304 Stainless Steel Capillary Tube High Precision Cold Drawn

Ask Lasest Price
Brand Name :	SPEZILLA
Model Number :	A269 Tube
Certification :	ISO
Price :	Negotiation
Supply Ability :	1000Tons/Month
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

Hydraulic 304 Stainless Steel Capillary Tube High Precision Cold Drawn

304 316 High Precision Hydraulic Complete Sizes Stainless Steel Capillary Tube


Grade	C	Si	Mn	P	S	Ni	Cr	Mo
201	≤0.15	≤1.00	0.15.5~7.5	≤0.060	≤0.03	3.50~5.50	16.00~18.00
202	≤0.15	≤1.00	0.7.5~10.00	≤0.060	≤0.03	4.0~6.0	17.00~19.00
301	≤0.15	≤1.00	≤2.00	≤0.045	≤0.03	6.00~8.00	16.00~18.00
302	≤0.15	≤1.00	≤2.00	≤0.045	≤0.03	8.00~10.00	17.00~19.00
304	≤0.07	≤1.00	≤2.00	≤0.045	≤0.03	8.00~10.00	18.00~20.00	-
304L	≤0.030	≤1.00	≤2.00	≤0.045	≤0.03	9.00~13.00	18.00~20.00	-
310S	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	19.00~22.00	24.00~26.00	-
316	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	10.00~14.00	16.00~18.00	2.00~3.00
316L	≤0.03	≤1.00	≤2.00	≤0.045	≤0.03	12.00~15.00	16.00~18.00	2.00~3.00
321	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	9.00~13.00	17.00~19.00	-
430	≤0.12	≤0.75	≤1.00	≤0.040	≤0.03	≤0.60	16.00~18.00	-
430A	≤0.06	≤0.50	≤0.50	≤0.030	≤0.50	≤0.25	14.00~17.00

Available tube product forms

Straight
Coiled
Seamless
Seam welded and cold redrawn
Seam welded, cold redrawn and annealed

Typical Applications

Moisture seperator reheaters
Feedwater tubes
Stator bars
Heat exchangers

Features:

1. Dual Certified Austenitic 316/316L Stainless Steel

2. Annealed Instrumentation Grade Tubing

3. Complies to / Exceeds ASTM A269 Standard

4. Chemically Cleaned and Passivated

5. Available in sizes from 1/4” to 1-1/2” OD

6. Metric Sizes Available

7. Minimum 2.5% Molybdenum by Weight

8. Good resistance to attacks in acidic environments

9. Good resistance to pitting in neutral chloride-bearing solutions

10. Good resistance to Stress Corrosion Cracking

11. Good weldability

12. Surface - Polished to 320 grit

13. Hardness of not more than Rb 90

Product Name	high precision aisi 304 stainless steel micro capillary tube
Material	200Series/300Series/400Series
Product type	201/202/301/302/303/303Se/304/304L/304N/XM21/305/309S/310S/316/316Ti S31635/316L/316N/316LN/317/317L/321/347/XM7/XM15/XM27/403/405/410/420/430/431/440C/ASTM A564M-95 S17400/17700
Surface treatment	Custom Made, Black, Polishing, MirrorA/B, Sand Rolling, Lusterless, Colour Customized, Acid Washing, Varnish Paint
Technics	cold drawn, cold rolled, hot rolled.
MOQ	Product type
Delivery time	7-10 days after receive the deposit.
Terms of price	FOB, CIF,CFR,EXW,DDU.
Terms of	30%T/T as deposit and balance after receipt the copy of B/L.
Certification	BV, SGS,TUV.ISO9001:2008

Description	OD (mm)	Wall Thickness (mm)	Bar	Available Lengths
6 x 1 mm	6 mm	1 mm	428	3 Metre & 6 Metre Lengths
6 x 1.5 mm	6 mm	1.5 mm	627	3 Metre & 6 Metre Lengths
6 x 2 mm	6 mm	2 mm	942	3 Metre Lengths
8 x 1 mm	8 mm	1 mm	321	3 Metre & 6 Metre Lengths
8 x 1.5 mm	8 mm	1.5 mm	472	3 Metre & 6 Metre Lengths
8 x 2 mm	8 mm	2 mm	706	3 Metre Lengths
10 x 1 mm	10 mm	1 mm	257	3 Metre & 6 Metre Lengths
10 x 1.5 mm	10 mm	1.5 mm	385	3 Metre & 6 Metre Lengths
10 x 2 mm	10 mm	2 mm	564	3 Metre Lengths
12 x 1 mm	12 mm	1 mm	210	3 Metre Lengths
12 x 1.5 mm	12 mm	1.5 mm	321	3 Metre & 6 Metre Lengths
12 x 2 mm	12 mm	2 mm	420	3 Metre Lengths
15 x 1 mm	15 mm	1 mm	200	3 Metre Lengths
15 x 1.5 mm	15 mm	1.5 mm	257	3 Metre & 6 Metre Lengths
15 x 2 mm	15 mm	2 mm	376	3 Metre Lengths
16 x 1.5 mm	16 mm	1.5 mm	235	3 Metre & 6 Metre Lengths
16 x 2 mm	16 mm	2 mm	321	3 Metre Lengths
18 x 1.5 mm	18 mm	1.5 mm	235	3 Metre Lengths
18 x 2 mm	18 mm	2 mm	314	3 Metre Lengths
20 x 1.5 mm	20 mm	1.5 mm	212	3 Metre Lengths
20 x 2 mm	20 mm	2 mm	257	3 Metre & 6 Metre Lengths
20 x 3 mm	20 mm	3 mm	424	3 Metre Lengths
22 x 1.5 mm	22 mm	1.5 mm	193	3 Metre Lengths
22 x 2 mm	22 mm	2 mm	256	3 Metre Lengths
25 x 1.5 mm	25 mm	1.5 mm	169	3 Metre & 6 Metre Lengths
25 x 2 mm	25 mm	2 mm	226	3 Metre Lengths
25 x 2.5 mm	25 mm	2.5 mm	210	3 Metre Lengths
25 x 3 mm	25 mm	3 mm	339	3 Metre Lengths
28 x 2 mm	28 mm	2 mm	201	3 Metre Lengths
30 x 3 mm	30 mm	3 mm	257	3 Metre & 6 Metre Lengths
35 x 3 mm	35 mm	3 mm	242	3 Metre Lengths
42 x 3 mm	42 mm	3 mm	201	3 Metre Lengths
