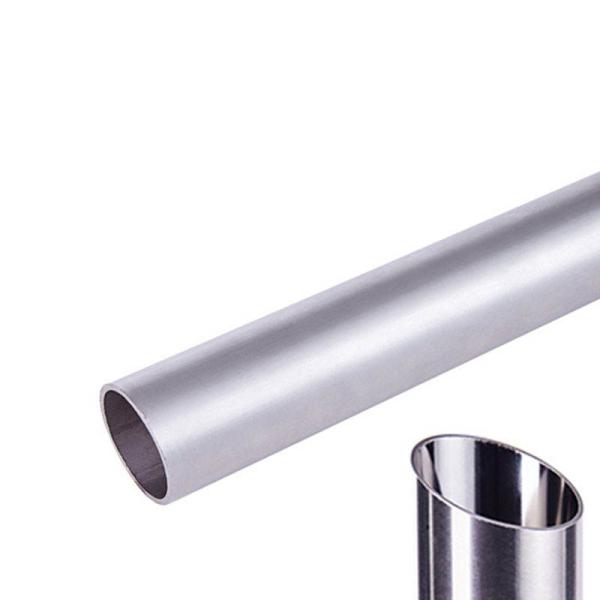

316 SS Capillary Tube Cold Drawn Seamless Bright Annealed Stainless Steel Tube

Ask Lasest Price
Brand Name :	BWSS
Model Number :	TP304/TP316L/TP904L
Certification :	PED, ISO, GOST
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	1000 tons per month
Delivery Time :	20 days

Add to Cart

Product Details
Company Profile

316 SS Capillary Tube Cold Drawn Seamless Bright Annealed Stainless Steel Tube

SS Capillary Tubing Stainless Steel 316 Precision Bright Annealed Tubes

Capillary Tubes Specification

Specifications : ASTM, ASME, AISI

Size : 1mm OD to 10mm OD

Thickness : 0.7 mm to 3.68 mm

Schedules : 5S, 10S, 20S, 40S, XS, 80S, 100S, 120S, 160S, XXS etc.

Length : Single Random, Double Random & Required Length

Form : Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes

End : Plain End, Beveled End, Treaded

1. Products Specification

Stainless Steel capillary tubes for medical needle Grade	Straight/ Coil tubing TP 304, TP 304L, TP 316/316L, TP321, TP316SS TP310S/ Incoloy800/825/600/625/718 Monel400/ K-50 etc.
Stainless Steel capillary tubes for medical needle Standard	Straight/ Coil tubing ASTM, GB, AISI, JIS, DIN,EU
Stainless Steel capillary tubes for medical needle Diameter	Straight/ Coil tubing 0.33mm-76mm
Stainless Steel capillary tubes for medical needle Thickness	Straight/ Coil tubing 0.1mm-3.0mm
Stainless Steel capillary tubes for medical needle Length	Straight/ Coil tubing Depending on your requirement 50-2000meters
Stainless Steel capillary tubes for medical needle Technique	Straight/ Coil tubing Cold drawing, precision rolling

Stainless Steel Capillary Tubes for medical needle applications and applicable fields:

Hydraulic control lines with seamless coil tubing
Marine seamless coil tubing
Oilfield test cable coil tubing
High-pressure instrumentation coil tubing
Health and medical grade seamless coil tubing
Cold heat exchanger seamless coil tubing
Coal mine detection seamless coil tubing
Deep-sea oil drilling seamless coil tubing
Instant water heater with seamless coil tubing
Water dispenser beverage machine with coil tubing
Refrigerating Equipment, Condensers
Beverage Machinery, machines in brewery industry
Evaporators,Heat Exchanger
Liquid/ Gas Transportation
CNG with coil tubing
Other Industries

Advantage:

• Advanced production and inspection equipment

• Top quality control system and service system

• Professional & Sincerity

• Competitive Price

• Good Reputation

• Timely Delivery

Applications Of Stainless Steel Capillary Tube

Medical device industry – injection needle tube, puncture needle tube
Industrial electric heating tube, oil tube
Temperature sensor, Sensor tube, Instrument tube
Automobile tube
Food industrial pipe,

The Stainless Steel Capillary Tubes are used while supplying liquids and gases from sensors to measuring instruments. The tubes are used in various critical applications with having an inner surface free from oil, grease and dust particles. These tubes are available in different sizes, tolerances and thickness as per the requirements of our clients.

Stainless Steel Capillary Pipes & Tubes are used in different applications of intra/extra cellular biology, separation sciences, hematology sampling and study, biotechnology, and biochemistry. Capillary Tube is a long, narrow tube of constant diameter.

Surface conditions for Stainless steel 304/304L capillary pipes and tubes:

Stainless steel 304/304L Bright Annealed capillary pipes and tubes
Stainless steel 304/304L Polished capillary pipes and tubes
Stainless steel 304/304L Annealed & Pickled capillary pipes and tubes
Stainless steel 304/304L Bright Annealed & polished capillary pipes and tubes
Stainless steel 304/304L Electro polishing capillary pipes and tubes

Stainless Steel Capillary Tube Size Range:

Gauge	Outside Diameter Tolerance mm	Regular Wall Thickness (RWT) mm	Thin Wall Thickness mm	Extra Thin Wall Thicknessmm	Ultra Thin Wall Thickness mm
30	0.304 – 0.317	0.064 – 0.089
29	o.330 – 0.342	0.064 – 0.089
28	0.355 – 0.368	0.076 – 0.102
27	0.406 – 0.419	0.089 – 0.115	0.064 – 0.089
26	0.457 – 0.469	0.089 – 0.114
25	0.508 – 0.520	0.115 – 0.140	0.089 – 0.114
24	0.558 – 0.571	0.114 – 0.140	0.089 – 0.114		0.051 – 0.102
23	0.635 – 0.647	0.140 – 0.165	0.089 – 0.114		0.051 – 0.102
22	0.711 – 0.723	0.140 – 0.165	0.096 – 0.121	0.077 – 0.102	0.051 – 0.102
21	0.812 – 0.825	0.140 – 0.165	0.102 – 0.127		0.051 – 0.102
20	0.901 – 0.914	0.108 – 0.165	0.108 – 0.134
19	1.054 – 1.079	0.166 – 0.216	0.102 – 0.140	0.070 – 0.108
18	1.257 – 1.282	0.191 – 0.241	0.127 – 0.165	0.083 – 0.121	0.051 – 0.102
17	1.460 – 1.485	0.177 – 0.229	0.115 – 0.152	0.083 – 0.127	0.057 – 0.102
16	1.638 – 1.663	0.204 – 0.254	0.127 – 0.165	0.096 – 0.133	0.070 – 0.121
15	1.816 – 1.841	0.204 – 0.254	0.127 – 0.165	0.096 – 0.134	0.070 – 0.121
14	2.082 – 2.133	0.216 – 0.292	0.165 – 0.229	0.114 – 0.165	0.076 – 0.134
13	2.387 – 2.438	0.267 – 0.343	0.191 – 0.267
12	2.743 – 2.749	0.267 – 0.321
11	3.023 – 3.073	0.293 – 0.368	0.216 – 0.292
10	3.378 – 3.429	0.318 – 0.394	0.216 – 0.292

Type	Chemical Composition(%)
ASTM	C	Cr	Ni	Mn	P	S	Mo	Si	Cu	N
TP304	≤0.08	18.0-20.0	8.0-11.0	≤2.00	≤0.045	≤0.030	- - -	≤1.00	- - -	- - -
TP304L	≤0.035	18.0-20.0	8.0-13.0	≤2.00	≤0.045	≤0.030	- - -	≤1.00	- - -	- - -
TP304H	0.04-0.10	18.0-20.0	8.0-11.0	≤2.00	≤0.045	≤0.030	- - -	≤1.00	- - -	- - -
TP310S	≤0.08	24.0-26.0	19.0-22.0	≤2.00	≤0.045	≤0.030	≤0.75	≤1.00	- - -	- - -
TP316	≤0.08	16.0-18.0	11.0-14.0	≤2.00	≤0.045	≤0.030	2.00-3.00	≤1.00	- - -	- - -
TP316L	≤0.035	16.0-18.0	10.0-14.0	≤2.00	≤0.045	≤0.030	2.00-3.00	≤1.00	- - -	- - -
TP316N	≤0.08	16.0-18.0	11.0-14.0	≤2.00	≤0.045	≤0.030	2.00-3.00	≤1.00	- - -	0.10-0.16
TP317L	≤0.035	18.0-20.0	11.0-15.0	≤2.00	≤0.045	≤0.030	3.0-4.0	≤1.00	- - -	- - -
TP321	≤0.08	17.0-19.0	9.0-12.0	≤2.00	≤0.045	≤0.030	- - -	≤1.00	- - -	≤0.10
TP321H	0.04-0.10	17.0-19.0	9.0-12.0	≤2.00	≤0.045	≤0.030	- - -	≤1.00	- - -	- - -
TP347	≤0.08	17.0-19.0	9.0-13.0	≤2.00	≤0.045	≤0.030	- - -	≤1.00	- - -	- - -
