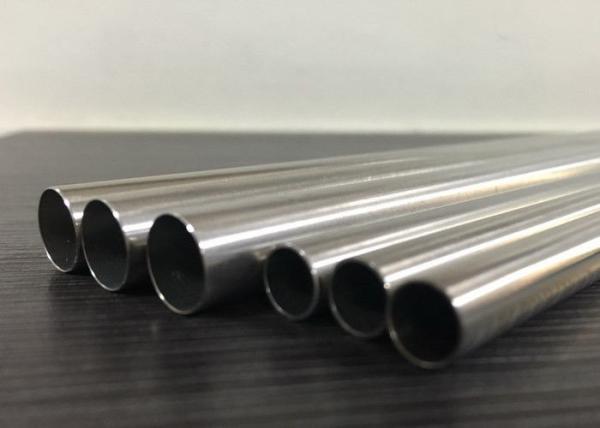

EN 1.4541, ASTM TYPE 321 / UNS S32100 OD10 X 1.0MM Welded Precision Stainless Steel Tubing Bright Annealed

Description:

321/4541 Welded Precision Stainless Steel Tubing is a titanium-stabilized austenitic stainless steel with improved intergranular corrosion resistance for an extended temperature range. 321/4541 is an austenitic stainless steel that belongs to the standard CrNi stainless steel family. 321/4541 can be welded in all dimensions without becoming susceptible to intergranular corrosion.

The austenitic CrNi standard grades are the most widely used group of stainless steels. Their well-balanced material properties make them suitable for the fabrication of many products. Due to its titanium content, 21/4541 can be used at elevated temperatures. For high-temperature applications, the use of the optimized high-temperature Therma 321H/4878 is recommended.

321/4541 is available in many product forms and dimensions, often also from many stainless steel stockholders. Polishing of Core 321/4541 is limited due to its titanium alloying.

Description:

1.4541 Stainless Steel / Spec: EN10217-7 / EN10088

Available Tube Product Forms:

Straight.
Coiled.
Welded and Cold Redrawn.

Quality Assurance:

Spezilla's 1.4541 welded precision stainless steel tubes are produced acc. to the following process and inspection to assure our quality:

1. Chemical Composition Analysis Test With 100% PMI.

2. Solution Annealing / Bright Annealed.

3. 100% Hydrostatic Test and 100% Eddy Current Test

4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.

5. Impact Test subject to Standard request.

6. Grain Size Test and Intergranular Corrosion Test.

7. Visual Test and Endoscope Test for Surface Quality Test

Typical Applications:

Heat Exchangers

Heating Elements

Instrumentation Tubing


Typical Manufacturing Specifications:

EN10217-7

ASTM A249

ASTM A269

Also individual customer specifications.

Spezilla specialise in manufacturing high quality precision stainless steel tube and other corrosion resistant alloy tubes that are designed to industry and customer specifications. Our products are manufactured to the highest quality standards and are very competitively priced. Our mission is to provide customized, flawless, reliable, and affordable corrosion resistant steel tubes to the world.

Tube Type:            Welded, Welded & Drawn. Straight Length or Coils.

Tube Materials:      Austenitic:    304, 304L, 316L, 321, 316Ti, 317L, 904L, 254 SMO;

                                                   1.4301, 1.4307, 1.4401, 1.4404, 1.4541, 1.4571, 1.4539, 1.4547;

                              Duplex:         2205, 2507;  1.4462, 1.4410;

                              Ferritic:         409, 439, 441, 444; 1.4512, 1.4510, 1.4509, 1.4521;

                              Nickel Alloy:  800, 800H, 800HT, 825, C276; 1.4876, 1.4958, 1.4959, 2.4858, 2.4819;

                              Titanium:       Gr.1, Gr.2;

Tube Size:              O.D. 4.00 - 38.10MM, W.T. 0.30 - 3.0MM.

Tube Finish:           As Welded, Bright Annealed, Annealed & Pickled, Polished, Custom Cutting.

Tube Standards:    ASTM A249, A268, A269, A270, A688, A789, B338;

                               EN 10217-7 TC1 & TC2, EN 10296-2, EN10357 etc.

Applications:          Heat Exchangers, Food & Beverage, Heating Elements, Automative, Tube Manipulation etc.

Spezilla appreciates the opportunity to help you with your questions about our operations, our products, our services or any other aspect of our business. We understand the demands of placing orders and the need for fast quotes, so we guarantee a response in 24 hours or less.
