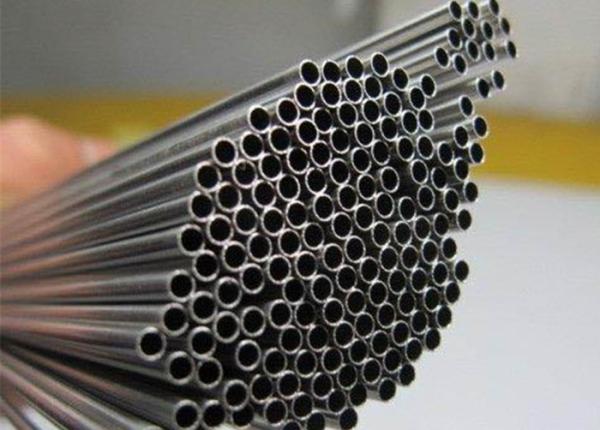

    Small Diameters SS Capillary Tube For Medical High Temperature Resistance

    Ask Lasest Price
    Brand Name : BWSS
    Model Number : TP304/TP316L/TP904L
    Certification : PED, ISO, GOST
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000 tons per month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Small Diameters SS Capillary Tube For Medical High Temperature Resistance

    SS304 304L 316L Capillary Tubes Small Diamters Tubes Used for Mecial


    Capillary Pipes Tubes &OCTG, CRA (Corrosion-Resistant Alloy) Seamless Tubes,Stainless Steel , Super Duplex , Duplex , Welded & Seamless, Carbon Steel Seamless Pipes, Tubes, Capillary Pipes & ‘U’ Tubes for applications in oil & gas, LNG, Thermal & Nuclear Power Plants, Chemical Industries, Fertilizers Plants, (petro) chemical, shipbuilding, desalination, water treatment, energy industries, EPC and Pipes for General Engineering Purpose.


    Stainless Steel Capillary Tube Size Range:



    Gauge    		Outside Diameter Tolerance mmRegular Wall Thickness (RWT) mmThin Wall Thickness mmExtra Thin Wall ThicknessmmUltra Thin Wall Thickness mm
    300.304 – 0.3170.064 – 0.089
    29o.330 – 0.3420.064 – 0.089
    280.355 – 0.3680.076 – 0.102
    270.406 – 0.4190.089 – 0.1150.064 – 0.089
    260.457 – 0.4690.089 – 0.114
    250.508 – 0.5200.115 – 0.1400.089 – 0.114
    240.558 – 0.5710.114 – 0.1400.089 – 0.1140.051 – 0.102
    230.635 – 0.6470.140 – 0.1650.089 – 0.1140.051 – 0.102
    220.711 – 0.7230.140 – 0.1650.096 – 0.1210.077 – 0.1020.051 – 0.102
    210.812 – 0.8250.140 – 0.1650.102 – 0.1270.051 – 0.102
    200.901 – 0.9140.108 – 0.1650.108 – 0.134
    191.054 – 1.0790.166 – 0.2160.102 – 0.1400.070 – 0.108
    181.257 – 1.2820.191 – 0.2410.127 – 0.1650.083 – 0.1210.051 – 0.102
    171.460 – 1.4850.177 – 0.2290.115 – 0.1520.083 – 0.1270.057 – 0.102
    161.638 – 1.6630.204 – 0.2540.127 – 0.1650.096 – 0.1330.070 – 0.121
    151.816 – 1.8410.204 – 0.2540.127 – 0.1650.096 – 0.1340.070 – 0.121
    142.082 – 2.1330.216 – 0.2920.165 – 0.2290.114 – 0.1650.076 – 0.134
    132.387 – 2.4380.267 – 0.3430.191 – 0.267
    122.743 – 2.7490.267 – 0.321
    113.023 – 3.0730.293 – 0.3680.216 – 0.292
    103.378 – 3.4290.318 – 0.3940.216 – 0.292

    Stainless Steel Capillary Tubes for medical needle applications and applicable fields:

    • Hydraulic control lines with seamless coil tubing
    • Marine seamless coil tubing
    • Oilfield test cable coil tubing
    • High-pressure instrumentation coil tubing
    • Health and medical grade seamless coil tubing
    • Cold heat exchanger seamless coil tubing
    • Coal mine detection seamless coil tubing
    • Deep-sea oil drilling seamless coil tubing
    • Instant water heater with seamless coil tubing
    • Water dispenser beverage machine with coil tubing
    • Refrigerating Equipment, Condensers
    • Beverage Machinery, machines in brewery industry
    • Evaporators,Heat Exchanger
    • Liquid/ Gas Transportation
    • CNG with coil tubing
    • Other Industries

    Advantage:


    • Advanced production and inspection equipment

    • Top quality control system and service system

    • Professional & Sincerity

    • Competitive Price

    • Good Reputation

    • Timely Delivery


    Applications Of Stainless Steel Capillary Tube

    • Medical device industry – injection needle tube, puncture needle tube
    • Industrial electric heating tube, oil tube
    • Temperature sensor, Sensor tube, Instrument tube
    • Automobile tube
    • Food industrial pipe,

    Stainless Steel Capillary Pipes & Tubes are used in different applications of intra/extra cellular biology, separation sciences, hematology sampling and study, biotechnology, and biochemistry. Capillary Tube is a long, narrow tube of constant diameter.


    1. Products Specification


    Stainless Steel capillary tubes for medical needle GradeStraight/ Coil tubing
    TP 304, TP 304L, TP 316/316L, TP321, TP316SS TP310S/ Incoloy800/825/600/625/718 Monel400/ K-50 etc.
    Stainless Steel capillary tubes for medical needle StandardStraight/ Coil tubing
    ASTM, GB, AISI, JIS, DIN,EU
    Stainless Steel capillary tubes for medical needle DiameterStraight/ Coil tubing
    0.33mm-76mm
    Stainless Steel capillary tubes for medical needle ThicknessStraight/ Coil tubing
    0.1mm-3.0mm
    Stainless Steel capillary tubes for medical needle LengthStraight/ Coil tubing
    Depending on your requirement 50-2000meters
    Stainless Steel capillary tubes for medical needle TechniqueStraight/ Coil tubing
    Cold drawing, precision rolling

    TYPE:

    SEAMLESS / ERW / WELDED/ SEMI-SEAMLESS / FABRICATED


    Grade of stainless steel capillary pipes & tubes:

    304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.


    Non-Ferrous Capillary pipes & tubes:

    Inconel, Monel, Hastelloy, Copper, Brass, Nickel, Copper-nickel alloys, Copper alloys, nickel alloys, duplex stainless steel and other types of steels.

    FORM:
    ROUND, STRAIT, HYDRAULIC ETC.

    LENGTH:
    SINGLE RANDOM, DOUBLE RANDOM , COIL FORM, CUT LENGTH

    END:

    PLAIN END, BEVELED END.


    Surface conditions for Stainless steel 304/304L capillary pipes and tubes:

    • Stainless steel 304/304L Bright Annealed capillary pipes and tubes
    • Stainless steel 304/304L Polished capillary pipes and tubes
    • Stainless steel 304/304L Annealed & Pickled capillary pipes and tubes
    • Stainless steel 304/304L Bright Annealed & polished capillary pipes and tubes
    • Stainless steel 304/304L Electro polishing capillary pipes and tubes

    TypeChemical Composition(%)
    ASTMCCrNiMnPSMoSiCuN
    TP304≤0.0818.0-20.08.0-11.0≤2.00≤0.045≤0.030- - -≤1.00- - -- - -
    TP304L≤0.03518.0-20.08.0-13.0≤2.00≤0.045≤0.030- - -≤1.00- - -- - -
    TP304H0.04-0.1018.0-20.08.0-11.0≤2.00≤0.045≤0.030- - -≤1.00- - -- - -
    TP310S≤0.0824.0-26.019.0-22.0≤2.00≤0.045≤0.030≤0.75≤1.00- - -- - -
    TP316≤0.0816.0-18.011.0-14.0≤2.00≤0.045≤0.0302.00-3.00≤1.00- - -- - -
    TP316L≤0.03516.0-18.010.0-14.0≤2.00≤0.045≤0.0302.00-3.00≤1.00- - -- - -
    TP316N≤0.0816.0-18.011.0-14.0≤2.00≤0.045≤0.0302.00-3.00≤1.00- - -0.10-0.16
    TP317L≤0.03518.0-20.011.0-15.0≤2.00≤0.045≤0.0303.0-4.0≤1.00- - -- - -
    TP321≤0.0817.0-19.09.0-12.0≤2.00≤0.045≤0.030- - -≤1.00- - -≤0.10
    TP321H0.04-0.1017.0-19.09.0-12.0≤2.00≤0.045≤0.030- - -≤1.00- - -- - -
    TP347≤0.0817.0-19.09.0-13.0≤2.00≤0.045≤0.030- - -≤1.00- - -

    - - -
