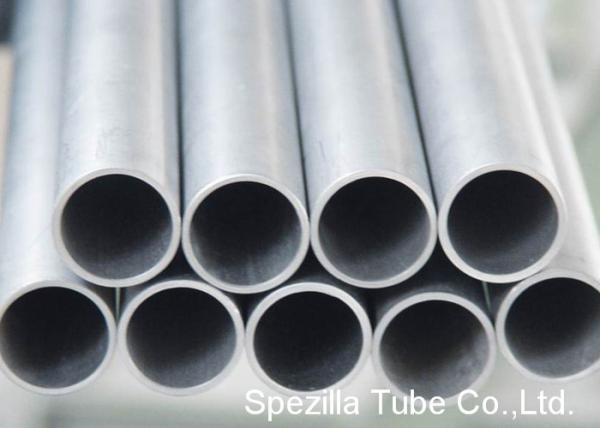

ASTM B163, ASTM B167 Alloy 600 UNSN06600/W.Nr. 2.4816 NICKEL ALLOY SEAMLESS TUBING

Description:

Alloy 600 seamless nickel tubing is a nickel-chromium alloy with good oxidation resistance to 2000 degree F. Good strength and resistance to general corrosion in a variety of elements.

Resists stress-corrosion cracking.

Typical applications: thermocouple, furnace muffles, heat exchangers

Stock Size Range:

Specifications: AMS 5580, ASTM B163, ASTM B167, ASME SB163, ASME SB167

Available tube product forms

Straight

Seamless

Typical Applications

Heat exchangers

Steam Generators

High temperature applications exposed to caustic solutions

Industries predominantly using this grade

Chemical processing

Nuclear and power

Oil and gas

Alloy 600 is a nickel chromium iron alloy used for applications which require resistance to corrosion and heat. The alloy also has excellent mechanical properties and presents the desirable combination of high strength and good workability under a wide range of temperatures.

DESIGN FEATURES

High nickel content offers excellent resistance to corrosion by many organic and inorganic compounds.
Virtually immune to chlorideon stress corrosion cracking.
Chromium confers resistance to sulfur compounds and provides resistance to oxidizing conditions at high temperatures or in corrosive solutions.
Alloy 600 is not precipitative hardenable, it is hardened and strengthened only by cold work.
Good for a variety of applications involving temperatures from cryogenic to above 2,000°F.

TYPICAL APPLICATIONS

Steam generators
Chemical processing
Food processing
Superheaters
Jet engines
Electronic parts

Physical Properties

Density: 0.304 lb/in3

Melting Point: 2470- 2575°F

Poisson's Ratio: 0.29

Electrical Resistivity: 620 Ohm-circ mil/ft

* 70°F to indicated temperature.

Mechanical Properties

Representative Tensile Properties

Static Corrosion in Molten Caustic Soda

Corrosion Rate, Mils Per Year

Spezilla specialise in manufacturing high quality precision stainless steel tube and other corrosion resistant alloy tubes that are designed to industry and customer specifications. Our products are manufactured to the highest quality standards and are very competitively priced. Our mission is to provide customized, flawless, reliable, and affordable corrosion resistant steel tubes to the world.

Tube Type:            Welded, Welded & Drawn. Straight Length or Coils.

Tube Materials:      Austenitic:    304, 304L, 316L, 321, 316Ti, 317L, 904L, 254 SMO;

                                                   1.4301, 1.4307, 1.4401, 1.4404, 1.4541, 1.4571, 1.4539, 1.4547;

                              Duplex:         2205, 2507;  1.4462, 1.4410;

                              Ferritic:         409, 439, 441, 444; 1.4512, 1.4510, 1.4509, 1.4521;

                              Nickel Alloy:  800, 800H, 800HT, 825, C276; 1.4876, 1.4958, 1.4959, 2.4858, 2.4819;

                              Titanium:       Gr.1, Gr.2;

Tube Size:              O.D. 4.00 - 38.10MM, W.T. 0.30 - 3.0MM.

Tube Finish:           As Welded, Bright Annealed, Annealed & Pickled, Polished, Custom Cutting.

Tube Standards:    ASTM A249, A268, A269, A270, A688, A789, B338;

                               EN 10217-7 TC1 & TC2, EN 10296-2, EN10357 etc.

Applications:          Heat Exchangers, Food & Beverage, Heating Elements, Automative, Tube Manipulation etc.

Spezilla appreciates the opportunity to help you with your questions about our operations, our products, our services or any other aspect of our business. We understand the demands of placing orders and the need for fast quotes, so we guarantee a response in 24 hours or less.
