Polished Flexible Stainless Steel Tubing SS U Tube ASME SA213 TP304N 19.05x2.11mm

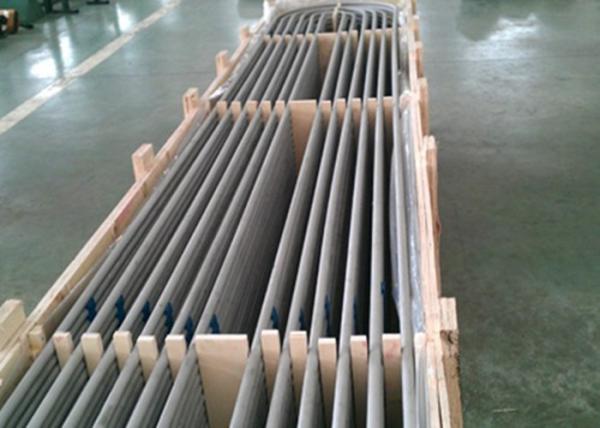

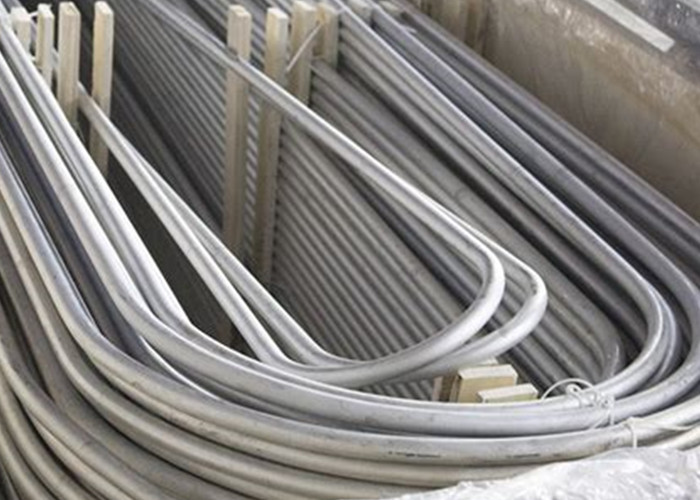

U-Bent Tubes

SPEZILLA Tube heat exchanger tubes can also be supplied as 'u' bends or serpentines, manufactured according to various heat exchanger standard or to customer's own specifications.

Standard Technical Range

• OD 9.5mm - 38.1mm
• WT up to 6.35mm
• Bending radii 1.25 x OD up to 1700mm
• Bends can be supplied in accordance with TEMA R / ASTM SA/A556
• Leg length up to 15000mm
• Heat treatment where required by electric furnance or direct resistance
• Hydrotesting up to 10,000 psi

Additional Testing

• Dye penetrant of 'U' bend area
• PMI testing
• Heat Treatment

Heat Treatment

We are equipped to carry out heat treatment of bends plus a minimum 150mm of leg.

Heat Treatment Equipment

• Heat treatment equipment is computer controlled with the added facility of data recording.
• An argon protective atmopshere is used inside stainless and special alloy tubes during heat treatment.
• We can provide all types of annealing; solution annealing and stress relieving.

Stainless Steel Tube Standards:

American standards:

ASTM A249: Standard specification for welded austenitic steel boiler,superheater, heat-exchanger and condenser tubes.

ASTM A269:Standard specification for welded austenitic stainless steel tubing for general service.

ASTM A688:Standard specification for welded austenitic stainless steel feedwater heater tubes.

ASTM A554:Standard specification for welded stainless steel mechanical tubing.

ASTM A268:Specification for seamless and welded Ferritic/Martensitic stainless steel tubing for General Service

ASTM A789:Specification for seamless and welded Ferritic/Austenitic stainless steel tubing for General Service

ASTM A312:Seamless/Welded austenitic stainless steel pipe

Germanic standards:

DIN17455:General purpose welded circular stainless steel tubes

DIN17457: Welded circular austenitic stainless steel tubes subject to special requirements; technical delivery conditions

European Standard:

EN 10217-7:Welded Steel Tubes for pressure purposes-Part 7 Stainless steel tubes

Spezilla specialise in manufacturing high quality precision stainless steel tube and other corrosion resistant alloy tubes that are designed to industry and customer specifications. Our products are manufactured to the highest quality standards and are very competitively priced. Our mission is to provide customized, flawless, reliable, and affordable corrosion resistant steel tubes to the world.

Tube Type:            Welded, Welded & Drawn. Straight Length or Coils.

Tube Materials:      Austenitic:    304, 304L, 316L, 321, 316Ti, 317L, 904L, 254 SMO;

                                                   1.4301, 1.4307, 1.4401, 1.4404, 1.4541, 1.4571, 1.4539, 1.4547;

                              Duplex:         2205, 2507;  1.4462, 1.4410;

                              Ferritic:         409, 439, 441, 444; 1.4512, 1.4510, 1.4509, 1.4521;

                              Nickel Alloy:  800, 800H, 800HT, 825, C276; 1.4876, 1.4958, 1.4959, 2.4858, 2.4819;

                              Titanium:       Gr.1, Gr.2;

Tube Size:              O.D. 4.00 - 38.10MM, W.T. 0.30 - 3.0MM.

Tube Finish:           As Welded, Bright Annealed, Annealed & Pickled, Polished, Custom Cutting.

Tube Standards:    ASTM A249, A268, A269, A270, A688, A789, B338;

                               EN 10217-7 TC1 & TC2, EN 10296-2, EN10357 etc.

Applications:          Heat Exchangers, Food & Beverage, Heating Elements, Automative, Tube Manipulation etc.
