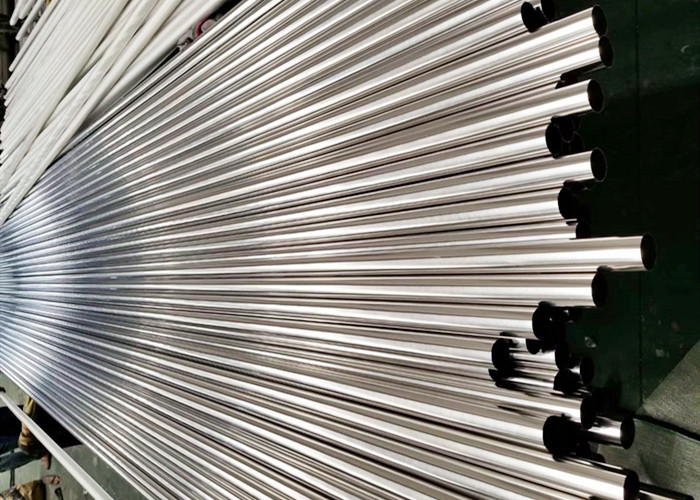

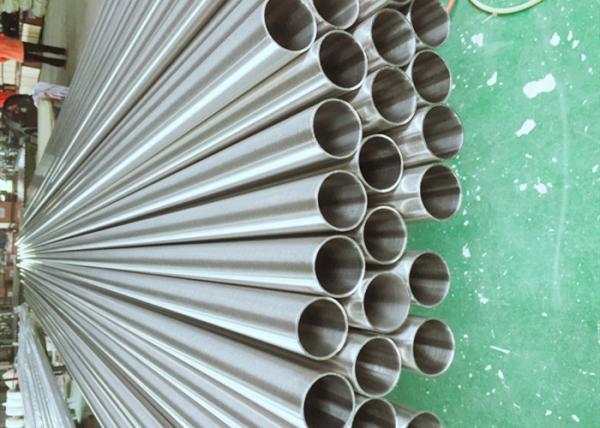

ASTM A270 Sanitary food grade stainless steel tubing 1'' X 0.065'' X 20FT ID/OD 320/180 GRIT Polished

When you are creating the perfect beverage, you want to have sanitary tubing that you can count on. We have some of the best stainless steel sanitary tubing on the market. All of our tubing meets 3A standards and come in a variety of sizes. Our team has been distributing premier stainless steel sanitary tubing for over 10 years, which means we know the ins and outs of our products and the industry. View our tubing selection below, and contact us if you have any questions.

Sanitary Stainless Steel ASTM A-270 Standards Tubing is available in multiple sizes and grades so that there’s a customized solution for your hygienic fluid operations. To maintain the highest sanitary standards, our sanitary tubing is packed individually in plastic sleeves and covered with plastic caps in both ends.

Bright Annealed Polished Stainless Steel Tubing.
Available in 304 & 316L Stainless Steel alloy.
Stamped with Heat Lot Number.
Manufactured in accordance with 3A Standards for sanitary line process requirements.

Description:

Chemical composition reference analysis (as weight %)

Mechanical values at room temperature

Available Tube Product Forms:

Straight Length.


Typical Applications:

Our sanitary tube is ideal for the dairy food and beverage industries where the highest degree purity and cleanliness is essential. It is certified to the requirements of ASTM A270, 3A standards, and most user specifications.

Quality Assurance:

Spezilla's stainless steel sanitary tubes are produced acc. to the following process and inspection to assure our quality:

1. Chemical Composition Analysis Test With 100% PMI.

2. Solution Annealing / Bright Annealed.

3. 100% Hydrostatic Test and 100% Eddy Current Test

4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.

5. Impact Test subject to Standard request.

6. Grain Size Test and Intergranular Corrosion Test.

7. Visual Test and Endoscope Test for Surface Quality Test

Typical Manufacturing Specifications:

ASTM A270

ASTM A269

Also individual customer specifications.

Spezilla specialise in manufacturing high quality precision stainless steel tube and other corrosion resistant alloy tubes that are designed to industry and customer specifications. Our products are manufactured to the highest quality standards and are very competitively priced. Our mission is to provide customized, flawless, reliable, and affordable corrosion resistant steel tubes to the world.

Tube Type:            Welded, Welded & Drawn. Straight Length or Coils.

Tube Materials:      Austenitic:    304, 304L, 316L, 321, 316Ti, 317L, 904L, 254 SMO;

                                                   1.4301, 1.4307, 1.4401, 1.4404, 1.4541, 1.4571, 1.4539, 1.4547;

                              Duplex:         2205, 2507;  1.4462, 1.4410;

                              Ferritic:         409, 439, 441, 444; 1.4512, 1.4510, 1.4509, 1.4521;

                              Nickel Alloy:  800, 800H, 800HT, 825, C276; 1.4876, 1.4958, 1.4959, 2.4858, 2.4819;

                              Titanium:       Gr.1, Gr.2;

Tube Size:              O.D. 4.00 - 38.10MM, W.T. 0.30 - 3.0MM.

Tube Finish:           As Welded, Bright Annealed, Annealed & Pickled, Polished, Custom Cutting.

Tube Standards:    ASTM A249, A268, A269, A270, A688, A789, B338;

                               EN 10217-7 TC1 & TC2, EN 10296-2, EN10357 etc.

Applications:          Heat Exchangers, Food & Beverage, Heating Elements, Automative, Tube Manipulation etc.

Spezilla appreciates the opportunity to help you with your questions about our operations, our products, our services or any other aspect of our business. We understand the demands of placing orders and the need for fast quotes, so we guarantee a response in 24 hours or less.
