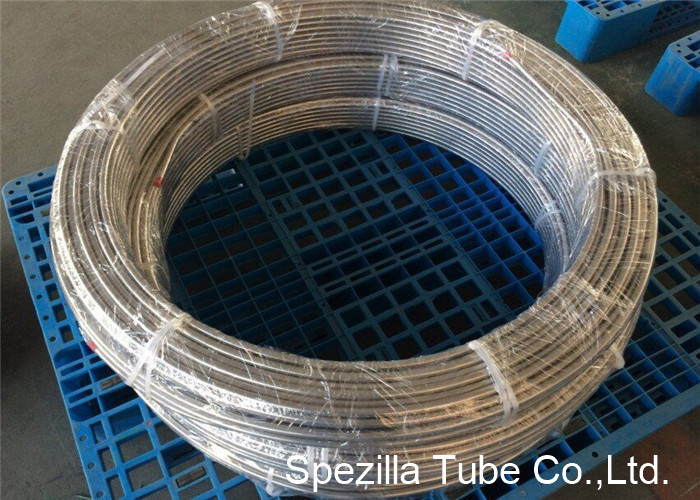

TP316L Seamless custom stainless steel tubing Cold Drawn 3/8'' X 0.035''

Seamless cold drawn coiled tubing,

according to ASTM A 269, A 213 (average wall), A 632 or EN 10216-5

coil lengths up to 1500 meters long (without welds)

Packing: level wounded on (pressed) wooden reels or single loose coils.

Specifications:

Cold drawn, bright annealed

Smooth finish up to <0,4 mm

Thermo couple clean per ASTM A 632 S3

Oil and grease free, for oxygen use.

Hardness max. 80 HRB

Intergranular corrosion test per ASTM A262 practice ‘’E’’

Packed on wooden, plastic drums or loose coils

Alloys:

From stock: 316L, 304L, 825

On request: 321, 310S, 904L, 200, 400, 600, 625, C276, C22

Standard dimension:

The coil lengths are from 30 till 1,200 meters.

The inside coil diameter below 5,00 mm is between 200 and 400 mm.

The inside coil diameter for 6,00 mm and above between 400 and 680 mm.

Spezilla specialise in manufacturing high quality precision stainless steel tube and other corrosion resistant alloy tubes that are designed to industry and customer specifications. Our products are manufactured to the highest quality standards and are very competitively priced. Our mission is to provide customized, flawless, reliable, and affordable corrosion resistant steel tubes to the world.

Tube Type:            Welded, Welded & Drawn. Straight Length or Coils.

Tube Materials:      Austenitic:    304, 304L, 316L, 321, 316Ti, 317L, 904L, 254 SMO;

                                                   1.4301, 1.4307, 1.4401, 1.4404, 1.4541, 1.4571, 1.4539, 1.4547;

                              Duplex:         2205, 2507;  1.4462, 1.4410;

                              Ferritic:         409, 439, 441, 444; 1.4512, 1.4510, 1.4509, 1.4521;

                              Nickel Alloy:  800, 800H, 800HT, 825, C276; 1.4876, 1.4958, 1.4959, 2.4858, 2.4819;

                              Titanium:       Gr.1, Gr.2;

Tube Size:              O.D. 4.00 - 38.10MM, W.T. 0.30 - 3.0MM.

Tube Finish:           As Welded, Bright Annealed, Annealed & Pickled, Polished, Custom Cutting.

Tube Standards:    ASTM A249, A268, A269, A270, A688, A789, B338;

                               EN 10217-7 TC1 & TC2, EN 10296-2, EN10357 etc.

Applications:          Heat Exchangers, Food & Beverage, Heating Elements, Automative, Tube Manipulation etc.

Spezilla appreciates the opportunity to help you with your questions about our operations, our products, our services or any other aspect of our business. We understand the demands of placing orders and the need for fast quotes, so we guarantee a response in 24 hours or less.
