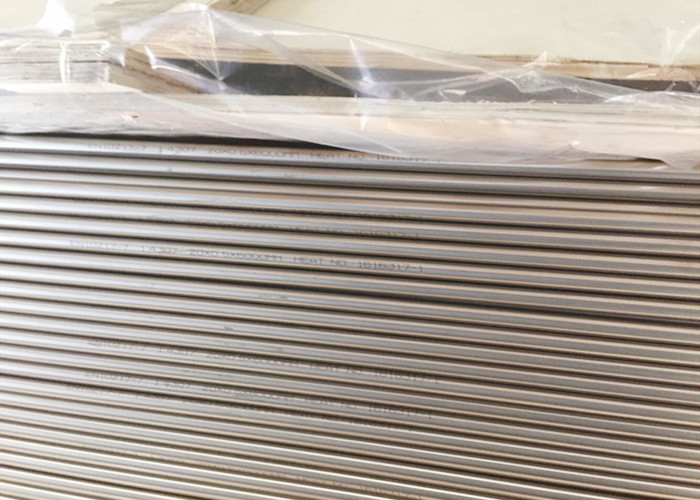

EN10217-7 OD20 X 0.5MM 1.4307 Welded Precision Stainless Steel Tubing Bright Annealed

Precision stainless steel tubing, also known as stainless steel precision tube, also known as precision tube. In the process of making precision stainless steel tubing in terms of the smoothness of the appearance or in the wall thickness, diameter tolerance range, are more accurate than the average Stainless Steel Tube to a lot. According to the most basic standards, precision stainless steel tubing can basically achieve the accuracy of ± 0.05mm- ± 0.15mm. Here the scope of the tolerance I also briefly explain. General caliber is relatively small, thin wall thickness of the tube tolerance are basically in the ± 0.05mm. And relatively large diameter stainless steel pipe tolerance range is basically ± 0.05mm- ± 0.15mm.

Product Description

By using 1.4307 welded stainless steel tube you get a corrosion resistant austenitic stainless steel with good formability. The steel is modified for machining and is available in a wide range of profiles and dimensions. The steel is often used for details within building and construction, machining industry.

The steel grade 1.4307 (also called ASTM304L) is a general purpose stainless steel, called 18-8-steel, with good corrosion resistant, impact strength and formability. The steel has improved machinability and it is suitable for production of corrosion resistant products by machining. It has good corrosion resistance to uniform corrosion and to many slightly corrosive organic and inorganic chemicals. It is non-magnetic but may become somewhat magnetic after cold working and welding.

Typical application areas for 1.4307:

• Construction
• Building
• Reinforcement
• Machining
• Bolts
• Fittings

1.4307 is a stainless steel which usually is more difficult to machine than ordinary carbon steels, It can be readily welded by a full range of conventional welding methods. 1.4307 cannot be hardened by heat treatment, but it can be hardened by cold working.

Description:

Chemical Composition 1.4307 Welded Stainless Steel Tube:

Mechanical Property 1.4307 Welded Stainless Steel Tube:

Available Tube Product Forms:

Straight.

Coiled.

Typical Applications:

Industrial

Lighting & Sensing

Seals & O-Rings

Lab / Instruments

Food / Beverage

Medical

Oil & Gas

Quality Assurance:

Spezilla's 1.4307 welded stainless steel tubes are produced acc. to the following process and inspection to assure our quality:

1. Chemical Composition Analysis Test With 100% PMI.

2. Solution Annealing / Bright Annealed.

3. 100% Hydrostatic Test and 100% Eddy Current Test

4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.

5. Impact Test subject to Standard request.

6. Grain Size Test and Intergranular Corrosion Test.

7. Visual Test and Endoscope Test for Surface Quality Test

Typical Manufacturing Specifications:

ASTM A249

ASTM A269

ASTM A270

EN10217-7

EN10296-2

Also individual customer specifications.

Spezilla specialise in manufacturing high quality precision stainless steel tube and other corrosion resistant alloy tubes that are designed to industry and customer specifications. Our products are manufactured to the highest quality standards and are very competitively priced. Our mission is to provide customized, flawless, reliable, and affordable corrosion resistant steel tubes to the world.

Tube Type:            Welded, Welded & Drawn. Straight Length or Coils.

Tube Materials:      Austenitic:    304, 304L, 316L, 321, 316Ti, 317L, 904L, 254 SMO;

                                                   1.4301, 1.4307, 1.4401, 1.4404, 1.4541, 1.4571, 1.4539, 1.4547;

                              Duplex:         2205, 2507;  1.4462, 1.4410;

                              Ferritic:         409, 439, 441, 444; 1.4512, 1.4510, 1.4509, 1.4521;

                              Nickel Alloy:  800, 800H, 800HT, 825, C276; 1.4876, 1.4958, 1.4959, 2.4858, 2.4819;

                              Titanium:       Gr.1, Gr.2;

Tube Size:              O.D. 4.00 - 38.10MM, W.T. 0.30 - 3.0MM.

Tube Finish:           As Welded, Bright Annealed, Annealed & Pickled, Polished, Custom Cutting.

Tube Standards:    ASTM A249, A268, A269, A270, A688, A789, B338;

                               EN 10217-7 TC1 & TC2, EN 10296-2, EN10357 etc.

Applications:          Heat Exchangers, Food & Beverage, Heating Elements, Automative, Tube Manipulation etc.

Spezilla appreciates the opportunity to help you with your questions about our operations, our products, our services or any other aspect of our business. We understand the demands of placing orders and the need for fast quotes, so we guarantee a response in 24 hours or less.
