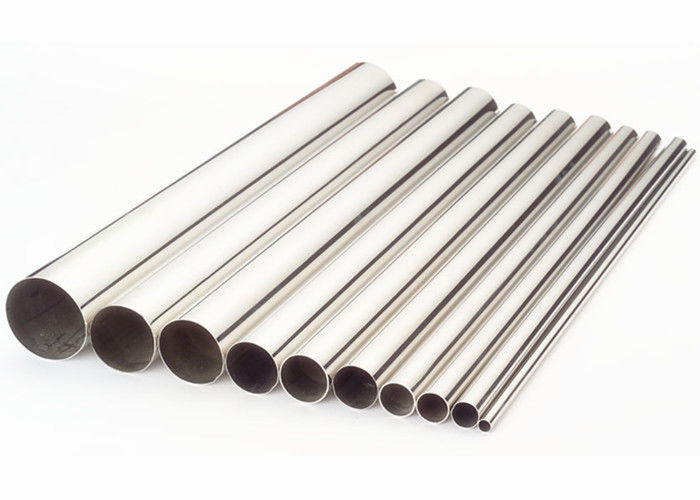

DIN 11850 Material 1.4307 DN50 Sanitary Stainless Steel High Purity Tubing Welded & OD 240G. Polished

Standard : ASTM/ASME A270, DIN 11850

Material : 1.4301, 1.4307, 1.4404

Type : Welded Tube

Processing Method : Welded & Polished

Max Length : 6 m.

Inside and Outside Surface : Polished 320 Grit (Ra ≤ 0.5µm)

Packing : Each in a PVC bag, Bundle with knitted plastic bag

Test : Eddy current test, Hydrostatic test

Application : Beer, Dairy, Beverage, Pharmacy, Food, Cosmetic, Chemical industry

Features:

Spezilla offers SMS Sanitary stainless steel tubing as well sanitary stainless steel high purity tube, meets EN10217/en10357 standards available in stainless steel AISI 316L(EN14404), 304L(EN14307) or 304 from 1” to 4” sizes, following SMS (Swedish Milk Standards). Surface finishing inside (132 μm/ 0,8 μm) Ra or 180 grit, outside (150 grit/ brushed) Roughness. To maintain clean standards tubes are packed individually in plastic sleeves and covered with plastic caps in both ends.

All diameters are available in 19 ft, 8 in - 236 inches (6.0 mts) standard length, cut to size upon request.

Descriptions:

Chemical Compositions:

Mechanical Properties:

Quality Assurance:

1. 100% PMI / SPECTRO CHEMICAL ANALYSIS TESTS

2. 100% DIMENSION TESTS & 100% VISUAL EXAMINATION

3. Tension Test, Flaring Tests(For Seamless Tube/Pipe)/Flange Tests(For Welded Tube/Pipe), Hardness Test, Reversed Flattening Test(For Welded Tube/Pipe), Flattening Test (For Seamless Tube/Pipe)

4. 100% Hydrostatic Test/100% Non-Destructive Tests

5. Rougness Tests

Notes : All The Tests And Inspection Need To Provide With Reports According To Standard And Test Results

A. Mtc (Material Test Certification) According To En10204/3.1 Or En 10204/3.2
B. Raw Material Certification
C. All The Test & Inspection Reports As Per Po And Standards
D. Heat Treatment Report
E. Shipping Notification Before Shipment
F. Quality Warranty Letter

Applications:

Spezilla's EN10217-7 DIN 11850 EN 10357 welded stainless steel high purity sanitary tubings are applicable to a wide range of manufacturing industries as following:

1. Food Processing & Beverage

2. Dairy

3. Wine & Brewery

4. Cosmetic

5. Biotechnolgy, Pharmaceutical

Spezilla specialise in manufacturing high quality precision stainless steel tube and other corrosion resistant alloy tubes that are designed to industry and customer specifications. Our products are manufactured to the highest quality standards and are very competitively priced. Our mission is to provide customized, flawless, reliable, and affordable corrosion resistant steel tubes to the world.

Tube Type:            Welded, Welded & Drawn. Straight Length or Coils.

Tube Materials:      Austenitic:    304, 304L, 316L, 321, 316Ti, 317L, 904L, 254 SMO;

                                                   1.4301, 1.4307, 1.4401, 1.4404, 1.4541, 1.4571, 1.4539, 1.4547;

                              Duplex:         2205, 2507;  1.4462, 1.4410;

                              Ferritic:         409, 439, 441, 444; 1.4512, 1.4510, 1.4509, 1.4521;

                              Nickel Alloy:  800, 800H, 800HT, 825, C276; 1.4876, 1.4958, 1.4959, 2.4858, 2.4819;

                              Titanium:       Gr.1, Gr.2;

Tube Size:              O.D. 4.00 - 38.10MM, W.T. 0.30 - 3.0MM.

Tube Finish:           As Welded, Bright Annealed, Annealed & Pickled, Polished, Custom Cutting.

Tube Standards:    ASTM A249, A268, A269, A270, A688, A789, B338;

                               EN 10217-7 TC1 & TC2, EN 10296-2, EN10357 etc.

Applications:          Heat Exchangers, Food & Beverage, Heating Elements, Automative, Tube Manipulation etc.

Spezilla appreciates the opportunity to help you with your questions about our operations, our products, our services or any other aspect of our business. We understand the demands of placing orders and the need for fast quotes, so we guarantee a response in 24 hours or less.
