Polished Annealed High Purity Stainless Steel Tubing ID/OD 0.5um 1.5'' X 0.065''

Features:

Spezilla offers ASME BPE high purity stainless steel sanitary tubing that is manufactured to the stringent ASME BPE and ASTM A270 S2 specifications. This high quality tubing is 100% boroscoped and mechnically polished on both the ID and OD, certified to 20 u-in Ra (0.5um) inner diameter (ID) maximum, and 30 u-in Ra (0.8um) outer diameter (OD) maximum surface roughness. Surface finishes are measured per ASME/ANSI B46.1, with the profilometer reading at 90 degrees to major polish pattern. Our A270-BPE series tubing significantly reduces customer inspection requirements prior to installation by utilizing only the highest quality stainless steel materials. Spezilla offers industry leading stainless steel sanitary tubing along with technical expertise and unmatched service. We stock all standard ASME BPE tubings in size 1/2'' - 6'' in 20ft lengths.

Descriptions:

Chemical Compositions:

Mechanical Properties:

Quality Assurance:

Spezilla's ASME BPE high purity stainless steel sanitary tubing undergoes a rigorous quality inspection, including destructive and non-destructive examination, at the mill prior to shipment.

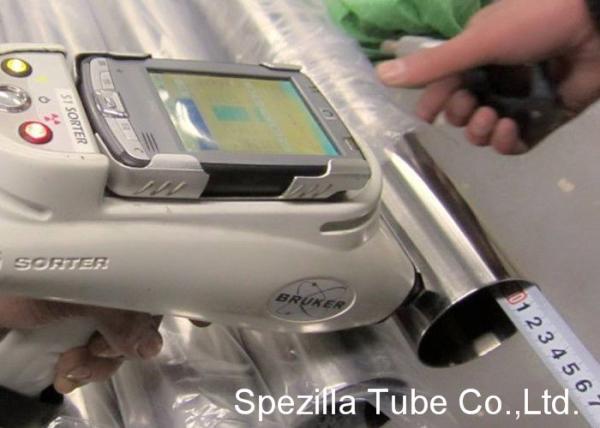

1. Chemical Composition: PMI Test

2. Mechanical Properties: Tensile Test, Hardsness Test

3. 100% Eddy Current, Air Under Water Test, Hydrostatic Test

4. Flange Test, Flattening Test, Reverse Flattening Test, Reverse Bending Test.

5. Dimensional Check: OD, WT, Straightness

6. Metallurgical Test

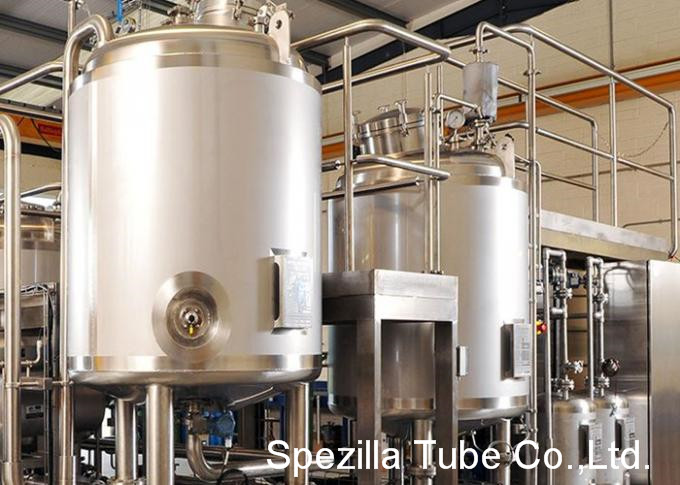

Applications:

Our ASME BPE stainless steel sanitary tubings are applicable to a wide range of manufacturing industries:

1. Food & Beverage

2. Dairy

3. Wine & Brewery

4. Cosmetic

5. Pharmacy

6. Biotechnology

Spezilla specialise in manufacturing high quality precision stainless steel tube and other corrosion resistant alloy tubes that are designed to industry and customer specifications. Our products are manufactured to the highest quality standards and are very competitively priced. Our mission is to provide customized, flawless, reliable, and affordable corrosion resistant steel tubes to the world.

Tube Type:            Welded, Welded & Drawn. Straight Length or Coils.

Tube Materials:      Austenitic:    304, 304L, 316L, 321, 316Ti, 317L, 904L, 254 SMO;

                                                   1.4301, 1.4307, 1.4401, 1.4404, 1.4541, 1.4571, 1.4539, 1.4547;

                              Duplex:         2205, 2507;  1.4462, 1.4410;

                              Ferritic:         409, 439, 441, 444; 1.4512, 1.4510, 1.4509, 1.4521;

                              Nickel Alloy:  800, 800H, 800HT, 825, C276; 1.4876, 1.4958, 1.4959, 2.4858, 2.4819;

                              Titanium:       Gr.1, Gr.2;

Tube Size:              O.D. 4.00 - 38.10MM, W.T. 0.30 - 3.0MM.

Tube Finish:           As Welded, Bright Annealed, Annealed & Pickled, Polished, Custom Cutting.

Tube Standards:    ASTM A249, A268, A269, A270, A688, A789, B338;

                               EN 10217-7 TC1 & TC2, EN 10296-2, EN10357 etc.

Applications:          Heat Exchangers, Food & Beverage, Heating Elements, Automative, Tube Manipulation etc.

Spezilla appreciates the opportunity to help you with your questions about our operations, our products, our services or any other aspect of our business. We understand the demands of placing orders and the need for fast quotes, so we guarantee a response in 24 hours or less.
