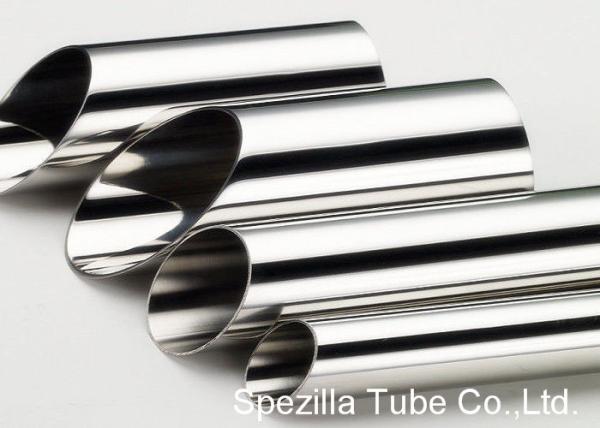

ASTM A269 A270 Polishe High Purity Stainless Steel Tubing TP316/316L 1'' X 0.065'' X 20FT

Spezilla stocks high purity tubing in two finishes: mechanically polished to 20 Ra ID (SF1) and electropolished with 15 Ra ID (SF4). SF1 tubing is mechanically polished to a surface finish of 20 μ-in Ra (0.5 μm) ID maximum, 30 μ-in Ra (0.8 μm) OD maximum measured per ASME/ANSI B46.1 with the profilometer reading at 90 degrees to major polishing pattern. SF4 tubing is mechanically polished to a surface finish of 20 μ-in Ra (0.5 μm) ID maximum, 30 μ-in Ra (0.8 μm) OD, then an electropolished for an ID of 15 Ra (.4 μm) maximum.

Descriptions:

Chemical Compositions:

Mechanical Properties:

Quality Assurance:

Spezilla's Electropolished stainless steel tubing are produced acc. to the following process and inspection to assure our quality:

1. Chemical Composition Analysis Test With 100% PMI.

2. Solution Annealing / Bright Annealed.

3. 100% Hydrostatic Test and 100% Eddy Current Test

4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.

5. Impact Test subject to Standard request.

6. Grain Size Test and Intergranular Corrosion Test.

7. Visual Test and Endoscope Test for Surface Quality Test

8. Ultrasonic Test

Applications:

Spezilla's Electropolished stainless steel tubing is widely used in semiconductor, pharmaceutical, medical, food processing, biotechnology, and telecommunication industries because of the high degree of purity and low surface roughness.

1. Semiiconductor

2. Pharmaceutical

3. Medical

4. Food & Beverage Processing

5. Biotechnology

Spezilla specialise in manufacturing high quality precision stainless steel tube and other corrosion resistant alloy tubes that are designed to industry and customer specifications. Our products are manufactured to the highest quality standards and are very competitively priced. Our mission is to provide customized, flawless, reliable, and affordable corrosion resistant steel tubes to the world.

Tube Type:            Welded, Welded & Drawn. Straight Length or Coils.

Tube Materials:      Austenitic:    304, 304L, 316L, 321, 316Ti, 317L, 904L, 254 SMO;

                                                   1.4301, 1.4307, 1.4401, 1.4404, 1.4541, 1.4571, 1.4539, 1.4547;

                              Duplex:         2205, 2507;  1.4462, 1.4410;

                              Ferritic:         409, 439, 441, 444; 1.4512, 1.4510, 1.4509, 1.4521;

                              Nickel Alloy:  800, 800H, 800HT, 825, C276; 1.4876, 1.4958, 1.4959, 2.4858, 2.4819;

                              Titanium:       Gr.1, Gr.2;

Tube Size:              O.D. 4.00 - 38.10MM, W.T. 0.30 - 3.0MM.

Tube Finish:           As Welded, Bright Annealed, Annealed & Pickled, Polished, Custom Cutting.

Tube Standards:    ASTM A249, A268, A269, A270, A688, A789, B338;

                               EN 10217-7 TC1 & TC2, EN 10296-2, EN10357 etc.

Applications:          Heat Exchangers, Food & Beverage, Heating Elements, Automative, Tube Manipulation etc.

Spezilla appreciates the opportunity to help you with your questions about our operations, our products, our services or any other aspect of our business. We understand the demands of placing orders and the need for fast quotes, so we guarantee a response in 24 hours or less.
