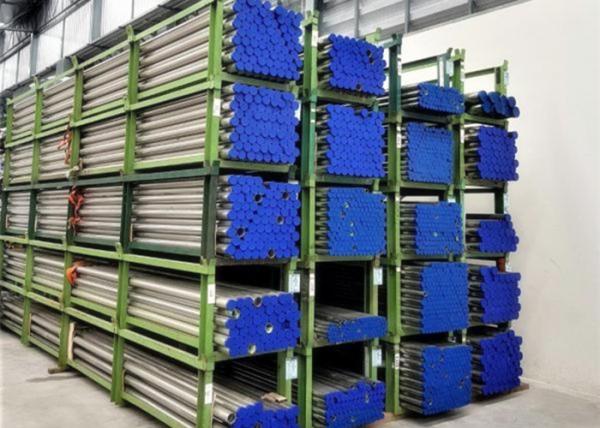

1.4301 Sanitary Metric Stainless Steel Tubing DIN 11850 104 X 2.0MM With OD Polished

Tube is manufactured welded-as-seam-less (WSL) according to the latest edition of EN10357 (previously DIN11850) with the specific purpose of servicing the food and beverage industries such as dairy and brewery companies in Europe and Southeast Asia.

High-Quality Sanitary Tubing That Meets DIN 11850 Standards

Aside from meeting 3-A standards, our stainless steel sanitary tubing also meets rigorous DIN standards.

Cut to size upon request, 236” standard length

Control the flow and direction of your hygienic fluids

For use in multiple industries and meets DIN 11850 standards

SPECS:

DIN 11850 Sanitary Stainless Steel Tubing

304L grade

DIN Type

Descriptions:

Chemical Compositions:

Mechanical Properties:

Quality Assurance:

1. 100% PMI / SPECTRO CHEMICAL ANALYSIS TESTS
2.100% DIMENSION TESTS & 100% VISUAL EXAMINATION
3. TENSION TEST, FLARING TESTS(FOR SEAMLESS TUBE/PIPE)/FLANGE TESTS(FOR WELDED TUBE/PIPE), HARDNESS TEST, REVERSED FLATTENING TEST(FOR WELDED TUBE/PIPE), FLATTENING TEST (FOR SEAMLESS TUBE/PIPE)
4. 100% HYDROSTATIC TEST/100% NON-DESTRUCTIVE TESTS
5. ROUGNESS TESTS

NOTES : ALL THE TESTS AND INSPECTION NEED TO PROVIDE WITH REPORTS ACCORDING TO STANDARD AND TEST RESULTS

a. MTC (MATERIAL TEST CERTIFICATION) ACCORDING TO EN10204/3.1 OR EN 10204/3.2
b. RAW MATERIAL CERTIFICATION
c. ALL THE TEST & INSPECTION REPORTS AS PER PO AND STANDARDS
d. HEAT TREATMENT REPORT
e. SHIPPING NOTIFICATION BEFORE SHIPMENT
f. QUALITY WARRANTY LETTER

Applications:

Spezilla's EN10217-7 DIN 11850 EN 10357 welded stainless steel sanitary tubings are applicable to a wide range of manufacturing industries as following:

1. Food Processing & Beverage

2. Dairy

3. Wine & Brewery

4. Cosmetic

5. Biotechnolgy, Pharmaceutical

Spezilla specialise in manufacturing high quality precision stainless steel tube and other corrosion resistant alloy tubes that are designed to industry and customer specifications. Our products are manufactured to the highest quality standards and are very competitively priced. Our mission is to provide customized, flawless, reliable, and affordable corrosion resistant steel tubes to the world.

Tube Type:            Welded, Welded & Drawn. Straight Length or Coils.

Tube Materials:      Austenitic:    304, 304L, 316L, 321, 316Ti, 317L, 904L, 254 SMO;

                                                   1.4301, 1.4307, 1.4401, 1.4404, 1.4541, 1.4571, 1.4539, 1.4547;

                              Duplex:         2205, 2507;  1.4462, 1.4410;

                              Ferritic:         409, 439, 441, 444; 1.4512, 1.4510, 1.4509, 1.4521;

                              Nickel Alloy:  800, 800H, 800HT, 825, C276; 1.4876, 1.4958, 1.4959, 2.4858, 2.4819;

                              Titanium:       Gr.1, Gr.2;

Tube Size:              O.D. 4.00 - 38.10MM, W.T. 0.30 - 3.0MM.

Tube Finish:           As Welded, Bright Annealed, Annealed & Pickled, Polished, Custom Cutting.

Tube Standards:    ASTM A249, A268, A269, A270, A688, A789, B338;

                               EN 10217-7 TC1 & TC2, EN 10296-2, EN10357 etc.

Applications:          Heat Exchangers, Food & Beverage, Heating Elements, Automative, Tube Manipulation etc.
