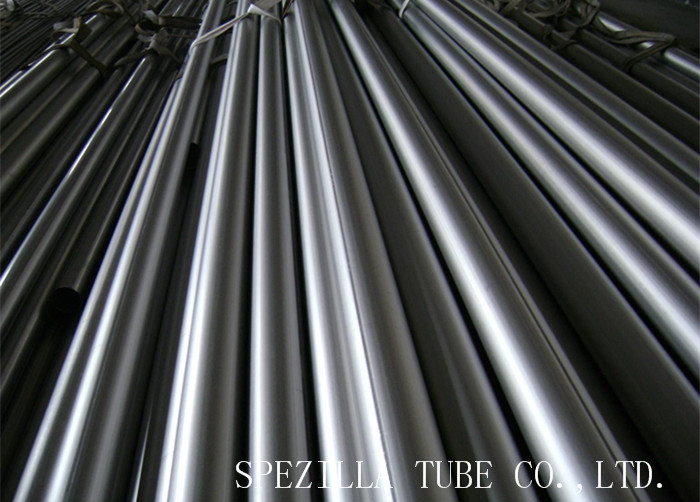

Duplex and Super duplex stainless steel USN31803/2205 Heat Exchanger Tube

The 2205 grade steel is one of the most widely used ferritic and austenitic duplex stainless steel. The standard of this grade of steel has been refined over the years creating a versatile and strong product. It is has an excellent corrosion resistance (including in seawater), it is weldable by all standard methods, and has a high heat resistance.

Features

• Corrosion Resistance: 2205 stainless stands-up excellently in a range of atmospheric environments even when exposed to corrosive elements, specifically to sea water.
• Heat Resistance: Generally, 2205 is not suitable for use at temperatures above 300°C as it suffers from precipitation of brittle micro-constituents.
• Avoid temperatures below -50°C because of its ductile-to-brittle-transition.
• Easy to weld with excellent weldability.
• The high strength of 2205 also makes bending and forming more difficult.

Applications can be used in chemical processing, transport, and storage for a variety of industries due to both its excellent corrosion resistance and high strength.

Specifications:

UNS S31803

ASME SA-182 (F51), SA-240, SA-798, SA-790, SA-815
ASTM A182 (F51),A240, A276, A479, A789, A790, A815, A928, A988
SAE J405

UNS S32205

ASME SA-182 (F60), SA-240, SA-798, SA-790, SA-815
ASTM A182 (F60), A240, A276, A479, A480, A798, A790, A815, A928, A988
SAE J405

Specifications of Duplex Stainless Steel Welded Tube

1. Standard: ASTM ASME
2. Grade: 630 / 631 / 2205 / 2507 / 17-4PH
ASTM A789, ASTM A790, ASTM A450, ASTM A530,
GB/T 14976, GB/T 14975, GB/T 13296, etc
3. OD: 8mm-1000mm
4. Wall thickness: 0.3mm-30mm
5. Length: max.18000mm or as demand

6. Surface finish: Polishing (180#,220#,240#,320#400#,600#), Hairline, acid pickled, etc.

2205 is a duplex (austenitic-ferritic) stainless steel containing about 40 - 50% ferrite in the annealed condition. 2205 has been a practical solution to chloride stress corrosion cracking problems experienced with 304/304L or 316/316L stainless. The high chromium, molybdenum and nitrogen contents provide corrosion resistance superior to 316/316L and 317L stainless in most environments. 2205 is not suggested for operating temperatures above 600°F.

The design strength of 2205 is significantly higher than 316/316L, often permitting lighter wall construction. 2205 has good notch impact toughness down to temperatures below - 40°F. 2205 is welded with E2209 or ER2209 fillers.

Features

Specifications:

Chemical Compositions:

Spezilla specialise in manufacturing high quality precision stainless steel tube and other corrosion resistant alloy tubes that are designed to industry and customer specifications. Our products are manufactured to the highest quality standards and are very competitively priced. Our mission is to provide customized, flawless, reliable, and affordable corrosion resistant steel tubes to the world.

Tube Type:            Welded, Welded & Drawn. Straight Length or Coils.

Tube Materials:      Austenitic:    304, 304L, 316L, 321, 316Ti, 317L, 904L, 254 SMO;

                                                   1.4301, 1.4307, 1.4401, 1.4404, 1.4541, 1.4571, 1.4539, 1.4547;

                              Duplex:         2205, 2507;  1.4462, 1.4410;

                              Ferritic:         409, 439, 441, 444; 1.4512, 1.4510, 1.4509, 1.4521;

                              Nickel Alloy:  800, 800H, 800HT, 825, C276; 1.4876, 1.4958, 1.4959, 2.4858, 2.4819;

                              Titanium:       Gr.1, Gr.2;

Tube Size:              O.D. 4.00 - 38.10MM, W.T. 0.30 - 3.0MM.

Tube Finish:           As Welded, Bright Annealed, Annealed & Pickled, Polished, Custom Cutting.

Tube Standards:    ASTM A249, A268, A269, A270, A688, A789, B338;

                               EN 10217-7 TC1 & TC2, EN 10296-2, EN10357 etc.

Applications:          Heat Exchangers, Food & Beverage, Heating Elements, Automative, Tube Manipulation etc.
