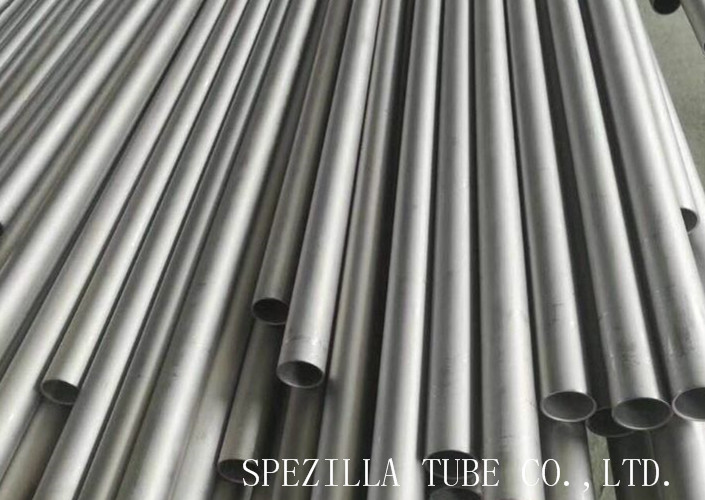

ASTM A789 2507 Super Duplex Tubing 1.4410 Super Duplex Stainless Steel Tube

Duplex Alloy 2507 is a super duplex stainless steel with 25% chromium, 4% molybdenum and 7% nickel. It has excellent resistance to chloride stress corrosion cracking, high thermal conductivity, and a low coefficient of thermal expansion. The high chromium, molybdenum and nitrogen levels provide excellent resistance to pitting, crevice and general corrosion. The impact strength is also high. Duplex Alloy 2507 is not recommended for applications which require long exposures to temperatures above 570 °F because of the risk of a reduction in toughness.

CHEMISTRY TYPICAL

Carbon: 0.03 max
Manganese: 1.2 max
Phosphorus: 0.035 max
Sulfur: 0.020 max
Silicon: 0.80 max
Chromium: 24.00 - 26.00
Nickel: 6.00 - 8.00
Molybdenum: 3.00 - 5.00
Nitrogen: 0.24 - 0.32
Copper: 0.50 max
Iron: Balance

PHYSICAL PROPERTIES

Density: 0.28 lbs/in3 7.75 g/cm3

Thermal Conductivity: BTU-ft/hr/ft2/°F (W/m-° K):
At 68 - 212 °F (20 - 100 °C): 9.0 (17.0)

Mean Coefficient of Thermal Expansion: in/in/°F (µm/m•K):
32 - 212 °F: 7.2 x 10·6 (13)

Modulus of Elasticity: ksi (MPa):
29 x 103 (200 x 103) in tension

Melting Point: 2570 - 2660 °F (1410 - 1460 °C)

Specifications:

S32750 Standard Specification:

Features

ASTM A789 S32750 (SAF2507) Stainless Steel Tubes Chemical Composition

ASTM A789 S32750(SAF2507) Stainless Steel Pipe Mechanical Properties

Spezilla specialise in manufacturing high quality precision stainless steel tube and other corrosion resistant alloy tubes that are designed to industry and customer specifications. Our products are manufactured to the highest quality standards and are very competitively priced. Our mission is to provide customized, flawless, reliable, and affordable corrosion resistant steel tubes to the world.

Tube Type:            Welded, Welded & Drawn. Straight Length or Coils.

Tube Materials:      Austenitic:    304, 304L, 316L, 321, 316Ti, 317L, 904L, 254 SMO;

                                                   1.4301, 1.4307, 1.4401, 1.4404, 1.4541, 1.4571, 1.4539, 1.4547;

                              Duplex:         2205, 2507;  1.4462, 1.4410;

                              Ferritic:         409, 439, 441, 444; 1.4512, 1.4510, 1.4509, 1.4521;

                              Nickel Alloy:  800, 800H, 800HT, 825, C276; 1.4876, 1.4958, 1.4959, 2.4858, 2.4819;

                              Titanium:       Gr.1, Gr.2;

Tube Size:              O.D. 4.00 - 38.10MM, W.T. 0.30 - 3.0MM.

Tube Finish:           As Welded, Bright Annealed, Annealed & Pickled, Polished, Custom Cutting.

Tube Standards:    ASTM A249, A268, A269, A270, A688, A789, B338;

                               EN 10217-7 TC1 & TC2, EN 10296-2, EN10357 etc.

Applications:          Heat Exchangers, Food & Beverage, Heating Elements, Automative, Tube Manipulation etc.
