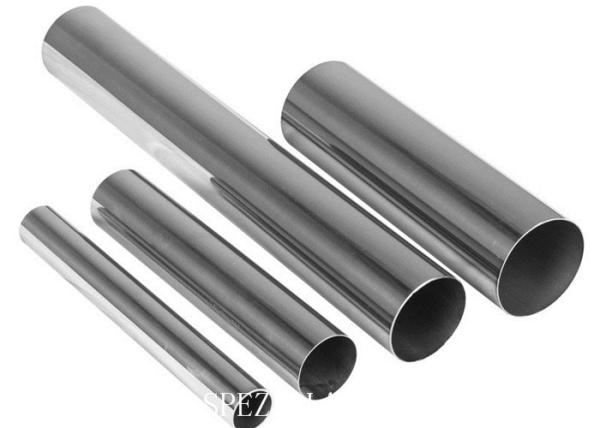

    2 Inch polished stainless steel tubing ,Food Grade Stainless Tubing Bead Removed

    Ask Lasest Price
    Brand Name : SPEZILLA
    Model Number : Round Tube
    Certification : ISO
    Price : Negotiation
    Supply Ability : 1000Tons/Month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    2 Inch polished stainless steel tubing ,Food Grade Stainless Tubing Bead Removed

    2 Inch polished stainless steel tubing ,Food Grade Stainless Tubing Bead Removed


    SS304 Stainless Steel Round Tube

    The most widely used of the stainless and heat resisting steels, 304 offers good corrosion resistance to many chemical corrodents as well as industrial atmospheres. Stainless steel round tube has excellent high and cold temperature working properties.


    SS304 Stainless Steel Round Tube is commonly used for fabrication and tooling applications. 304/304L dual certified.


    Stainless steel round tube 304 is used in numerous types of industrial applications, including:

    • Marine equipment
    • Handrails
    • Structural applications
    • Grab bars
    • Medical equipment
    • Table framing

    Applications:

    • Food preparation equipment, especially in chloride environments
    • Chemical processing, equipment
    • Laboratory benches and equipment
    • Rubber, plastics, pulp & paper machinery
    • Pollution control equipment
    • Boat fittings, value and pump trim
    • Heat exchangers
    • Pharmaceutical and textile industries
    • Condensers, evaporators and tanks

    Standards:

    • ASTM/ASME: UNS S31600 / S31603
    • EURONORM: X1 CrNiMo 17 12 2 / X3 CrNiMo 17 12 2
    • AFNOR: Z 6 CND 17-11 / Z 2 CND 17-12
    • DIN: 1.4401 / 1.4404

    SpecificationsASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V ASTM A789/A790
    DimensionsASTM, ASME and API
    Specialized inLarge Diameter Size
    317 Pipes & Tubes1/2" NB - 8" NB
    ERW 317 Pipes & Tubes1/2" NB - 24" NB
    EFW 317 Pipes & Tubes6" NB - 100" NB
    Tubing Size1/8″NB TO 30″NB IN
    ScheduleSCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
    LengthSingle Random, Double Random & Cut Length.
    TypeSeamless / ERW / Welded / Fabricated / LSAW Pipes
    FormRound, Square, Rectangular, Hydraulic Etc
    EndPlain End, Beveled End, Treaded

    MINAL
    DIAMETER NPS
    OUTSIDE
    DIAMETER(MM)
    SCH-5S
    WALL THICKNESS(MM)
    SCH-10S
    WALL THICKNESS(MM)
    SSCH-40S
    WALL THICKNESS(MM)
    1/413.721.652.24
    3/817.151.652.31
    1/221.341.652.112.77
    3/426.671.652.112.87
    133.401.652.773.38
    1 1/442.161.652.773.56
    1 1/248.261.652.773.68
    260.31.652.773.91
    2 1/273.032.113.055.16
    388.902.113.055.49
    3 1/2101.602.113.055.74
    4114.302.113.056.02
    5141.302.773.406.55
    6168.282.773.407.11
    8219.082.773.768.18
    10273.053.404.199.27
    12323.853.964.579.53
    14355.603.964.789.53
    16406.404.194.789.53
    18457.204.194.789.53
    20508.004.785.549.53
    22558.804.785.54
    24609.605.546.359.53
    30762.006.357.92

    32

    |

    80

    812.8

    |

    2032.0

    (Thickness):6.35~30mm

    Nominal diameter and wall thickness subject to the approval of vendor and purchaser
