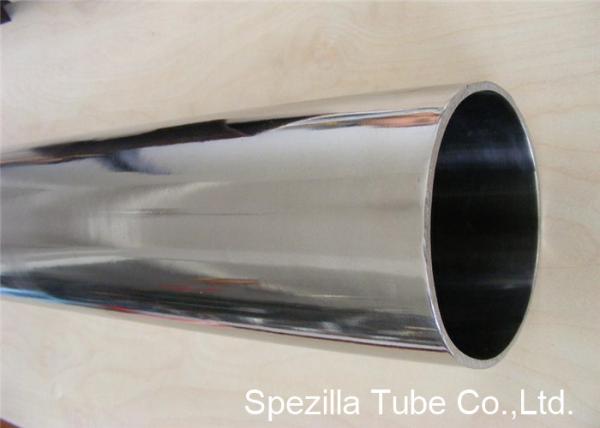

Durable Food Grade Automotive polished stainless steel tubing OD 2'' X 0.065'' X 20FT

    Buy cheap Durable Food Grade Automotive polished stainless steel tubing OD 2'' X 0.065'' X 20FT from wholesalers

    Buy cheap Durable Food Grade Automotive polished stainless steel tubing OD 2'' X 0.065'' X 20FT from wholesalers
    • Buy cheap Durable Food Grade Automotive polished stainless steel tubing OD 2'' X 0.065'' X 20FT from wholesalers
    • Buy cheap Durable Food Grade Automotive polished stainless steel tubing OD 2'' X 0.065'' X 20FT from wholesalers
    • Buy cheap Durable Food Grade Automotive polished stainless steel tubing OD 2'' X 0.065'' X 20FT from wholesalers
    • Buy cheap Durable Food Grade Automotive polished stainless steel tubing OD 2'' X 0.065'' X 20FT from wholesalers

    Durable Food Grade Automotive polished stainless steel tubing OD 2'' X 0.065'' X 20FT

    Ask Lasest Price
    Brand Name : SPEZILLA
    Model Number : 1/2'' - 8''
    Certification : 3A, ISO9001:2008
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100TONS / MONTH
    Delivery Time : 7 WORKING DAYS
    • Product Details
    • Company Profile

    Durable Food Grade Automotive polished stainless steel tubing OD 2'' X 0.065'' X 20FT

    Durable Food Grade Automotive polished stainless steel tubing OD 2'' X 0.065'' X 20FT


    General Information:


    ASTM A270 - Tubes for the food Industry


    This specification applies to general tube and food / milk processing industry.


    Available sizes :


    Tube sizes range from 12.7 mm to 203.2 mm outside diameter.


    Grades of Material :


    304, 304L,316, 316L Stainless Steel


    Manufacture :


    Automatic tig welding with no addition of filler metal


    Heat treatment :


    Tube is not post weld heat treated except for Standards ASTM A269 & A249 where tube is annealed.


    Size

    (TUBE O.D.)

    GAUGEWALLLBS/FT

    STOCK

    304

    STOCK

    316L

    1/216.065.3020YY
    3/416.065.4755YY
    118.049.4980YY
    116.065.6490YY
    1-1/218.049.7593YY
    1-1/216.065.9962YY
    218.0491.0210YY
    216.0651.3430YY
    2 1/216.0651.6900YY
    316.0652.0370YY
    414.0833.4720YY
    612.1096.9000YY
    812.1099.3000YY

    Mechanical Tests:


    Except tube made to ASTM A249 and specifically requested otherwise Yield stress , Tensile tests & Hardness Mn - Manganese tests are from coil manufactured to ASTM A240 / 480.
    Yield Stress
    TP 304 & TP 316205 MPa min
    TP 316L & TP304L170 MPa min
    Tensile Stress:
    TP 304 & TP 316515 MPa min
    TP 316L & TP 304L485 MPa min
    Elongation:
    40% Minimum (50mm test piece)
    Hardness tests:
    TP 304 & TP 304L92 HRB / 202 HB30 max
    TP 316 & TP 316L95 HRB / 217 HB30 max

    Weld Bead:


    Weld bead rolled of stainless steel sanitary pipe.


    Straightness:


    Maximum of 1.0 mm / metre


    End finish :


    Sizes to 203.2 deburred both ends


    Finish Internal :


    Inside bead rolled, mechanical polished.


    Finish External :


    As welded condition (external weld bead removed).


    May have forming, straightening & weld polish cross hatch marking.


    Standard Polished equivalent to 320 Grit - typical Ra = 0.5µm to 0.8 µm


    Packaging:


    Polished Tube is individually plastic sleeved in a bundle with steel strapped cleats and plywood for forklift plate.


    Traceability:


    Controlled batch traceability from raw material to finished tube. For traceability purpose the tube is either inkjet marked or attached with label identifying sizes , batch & trace numbers.


    Test certificate:


    Raw material test certificates are available on request. EN10204 3.1 Certificate of Test of Finished Tube is provided for the tube dispatched under ASTM A249/ A269.


    Durable Food Grade Automotive polished stainless steel tubing OD 2'' X 0.065'' X 20FT
