ASTM A269 ASTM A249 bending stainless steel tubing into coil TP304/304L Bright Annealed

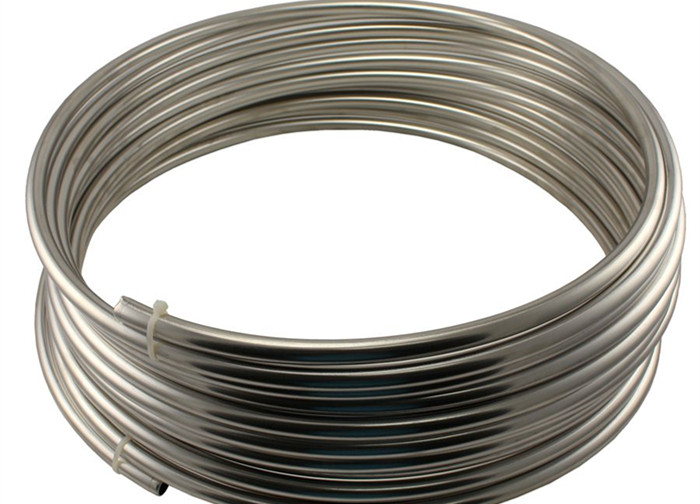

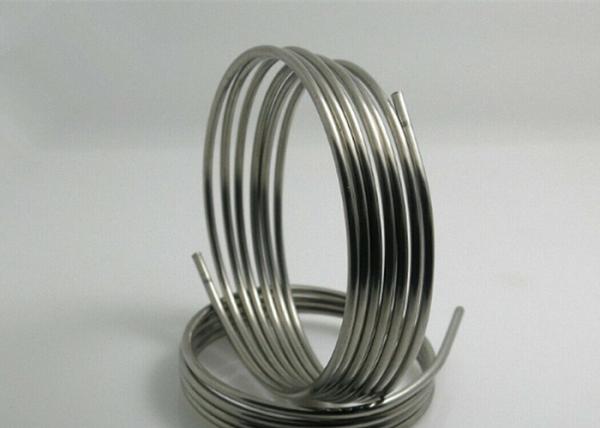

Stainless steel tube coil

we manufacture precision tubes using stainless steel, nickel, titanium and zirconium alloys, in a whole range of sizes and cross section shapes to suit your requirements. Both our seamless and welded products come both as straight lengths of tubing or in coils.

Seamless stainless steel coiled tube is available mainly for hydraulic tube, stainless steel instrumentation tubing, capillary tube, and bright annealed tube. This product is manufactured by cold drawn / cold roll method.

Available Tube Product Forms:
Coiled.

Typical Applications:

Stainless steel tube coils are ideal for use in potentially corrosive environments and for transferring liquids and gases for cooling, heating, and other purposes.
Quality Assurance:

Spezilla's coiled stainless steel tubes are produced acc. to the following process and inspection to assure our quality:

1. Chemical Composition Analysis Test With 100% PMI.

2. Solution Annealing / Bright Annealed.

3. 100% Hydrostatic Test and 100% Eddy Current Test

4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.

5. Impact Test subject to Standard request.

6. Grain Size Test and Intergranular Corrosion Test.

7. Visual Test and Endoscope Test for Surface Quality Test

Typical Manufacturing Specifications:

EN10217-7

ASTM A249

ASTM A269

Also individual customer specifications.

Spezilla offers stainless steel coiled tubing in sizes from 1/4 to 1 in. and wall thickness from 0.035 to 0.049 in. Our coiled tubing is available in lengths up to 2300 feet, which is up to 30% long than traditional offerings. In addition, Spezilla offers less than reel quantities of coiled tubing. Stainless steel tube straighteners make coiled tubing installation faster and easier.

Traceability – All material is fully heat and lot traceable, allowing us to track products from raw material to finished goods.

100% testing for reliability and safer installation - Every foot ofTubing undergoes 100% hydrostatic testing and positive material identification.

Description:

Chemical composition reference analysis (as weight %)

Mechanical values at room temperature

Spezilla specialise in manufacturing high quality precision stainless steel tube and other corrosion resistant alloy tubes that are designed to industry and customer specifications. Our products are manufactured to the highest quality standards and are very competitively priced. Our mission is to provide customized, flawless, reliable, and affordable corrosion resistant steel tubes to the world.

Tube Type:            Welded, Welded & Drawn. Straight Length or Coils.

Tube Materials:      Austenitic:    304, 304L, 316L, 321, 316Ti, 317L, 904L, 254 SMO;

                                                   1.4301, 1.4307, 1.4401, 1.4404, 1.4541, 1.4571, 1.4539, 1.4547;

                              Duplex:         2205, 2507;  1.4462, 1.4410;

                              Ferritic:         409, 439, 441, 444; 1.4512, 1.4510, 1.4509, 1.4521;

                              Nickel Alloy:  800, 800H, 800HT, 825, C276; 1.4876, 1.4958, 1.4959, 2.4858, 2.4819;

                              Titanium:       Gr.1, Gr.2;

Tube Size:              O.D. 4.00 - 38.10MM, W.T. 0.30 - 3.0MM.

Tube Finish:           As Welded, Bright Annealed, Annealed & Pickled, Polished, Custom Cutting.

Tube Standards:    ASTM A249, A268, A269, A270, A688, A789, B338;

                               EN 10217-7 TC1 & TC2, EN 10296-2, EN10357 etc.

Applications:          Heat Exchangers, Food & Beverage, Heating Elements, Automative, Tube Manipulation etc.

Spezilla appreciates the opportunity to help you with your questions about our operations, our products, our services or any other aspect of our business. We understand the demands of placing orders and the need for fast quotes, so we guarantee a response in 24 hours or less.
