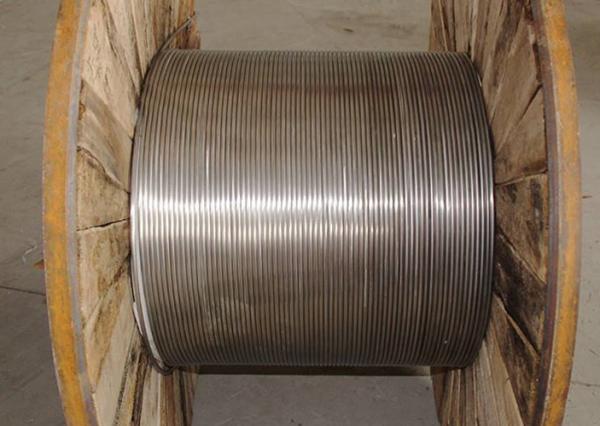

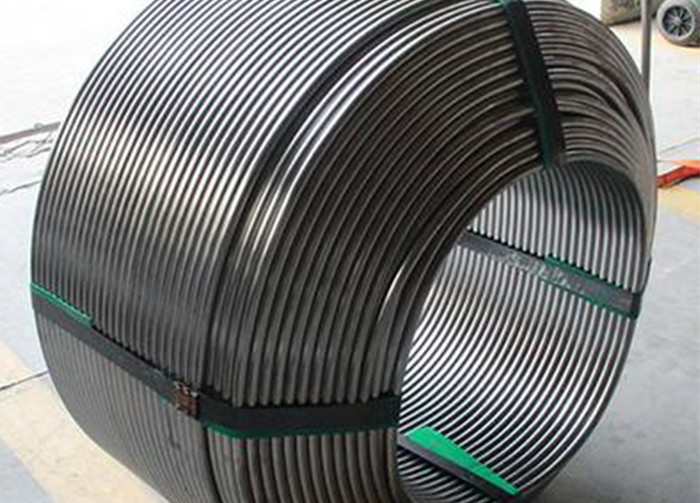

ASTM A269 Stainless Steel Coil Tubing heat exchanger TP316/316L​

Coiled Tubing services provide customers with reliable, efficient well intervention for vertical, horizontal, highly deviated, and live wells.

With our highly experienced personnel and engineering capabilities, we can customize the service for job-specific requirements. We provide exactly what our customers need to get the job done. This lets us deliver e, cost-effective solutions for virtually any operational challenge.

Typical Manufacturing Specifications:
EN10217-7
ASTM A249
ASTM A269

Material: TP316L UNS S31603

OD: 2-3/8" or 2.375"
Chemistry Composition
C,% 0.035 max Mn,% 2.00 max P,% 0.045 max S,% 0.030 max Si,% 1.00 max Cr,% 16.0-18.0 Ni,% 10.0-14.0 Mo,% 2.00-3.00
Mechanical Properties
Tensile Strength: 70,000psi (483MPa) min
Yield Strength: 40,000psi (276MPa) min
Hardness: 192HBW, 200HV or 90HRB max

The stainless steel coil tubing is widely used for industrial applications such as heat exchanger, boiler, petroleum, chemical, fertilizer, chemical, pharmaceutical, nuclear power, etc. It is also used as fluid transport system such as beer, milk, water systems, medical equipment, etc. Its other applications include mechanical structure, printing and dyeing, textile machinery, medical equipment, kitchen equipment, automobile and ship accessories, building and decoration, etc.

Spezilla offers stainless steel coiled tubing in sizes from 1/4 to 1 in. and wall thickness from 0.035 to 0.049 in. Our coiled tubing is available in lengths up to 2300 feet, which is up to 30% long than traditional offerings. In addition, Spezilla offers less than reel quantities of coiled tubing. Stainless steel tube straighteners make coiled tubing installation faster and easier.

Traceability – All material is fully heat and lot traceable, allowing us to track products from raw material to finished goods.

100% testing for reliability and er installation - Every foot ofTubing undergoes 100% hydrostatic testing and positive material identification.

Features & Advantages:

Seamless stainless steel coil tubing can reduce the cost of installation due to:

- Higher rate of materials utilization
- Fewer collections
- System integrity can be improved much.
- Improve the ety of the pipeline system.

Description:

Chemical composition reference analysis (as weight %)

Spezilla specialise in manufacturing high quality precision stainless steel tube and other corrosion resistant alloy tubes that are designed to industry and customer specifications. Our products are manufactured to the highest quality standards and are very competitively priced. Our mission is to provide customized, flawless, reliable, and affordable corrosion resistant steel tubes to the world.

Tube Type:            Welded, Welded & Drawn. Straight Length or Coils.

Tube Materials:      Austenitic:    304, 304L, 316L, 321, 316Ti, 317L, 904L, 254 SMO;

                                                   1.4301, 1.4307, 1.4401, 1.4404, 1.4541, 1.4571, 1.4539, 1.4547;

                              Duplex:         2205, 2507;  1.4462, 1.4410;

                              Ferritic:         409, 439, 441, 444; 1.4512, 1.4510, 1.4509, 1.4521;

                              Nickel Alloy:  800, 800H, 800HT, 825, C276; 1.4876, 1.4958, 1.4959, 2.4858, 2.4819;

                              Titanium:       Gr.1, Gr.2;

Tube Size:              O.D. 4.00 - 38.10MM, W.T. 0.30 - 3.0MM.

Tube Finish:           As Welded, Bright Annealed, Annealed & Pickled, Polished, Custom Cutting.

Tube Standards:    ASTM A249, A268, A269, A270, A688, A789, B338;

                               EN 10217-7 TC1 & TC2, EN 10296-2, EN10357 etc.

Applications:          Heat Exchangers, Food & Beverage, Heating Elements, Automative, Tube Manipulation etc.

Spezilla appreciates the opportunity to help you with your questions about our operations, our products, our services or any other aspect of our business. We understand the demands of placing orders and the need for fast quotes, so we guarantee a response in 24 hours or less.
